View a meter

View the list of Meters

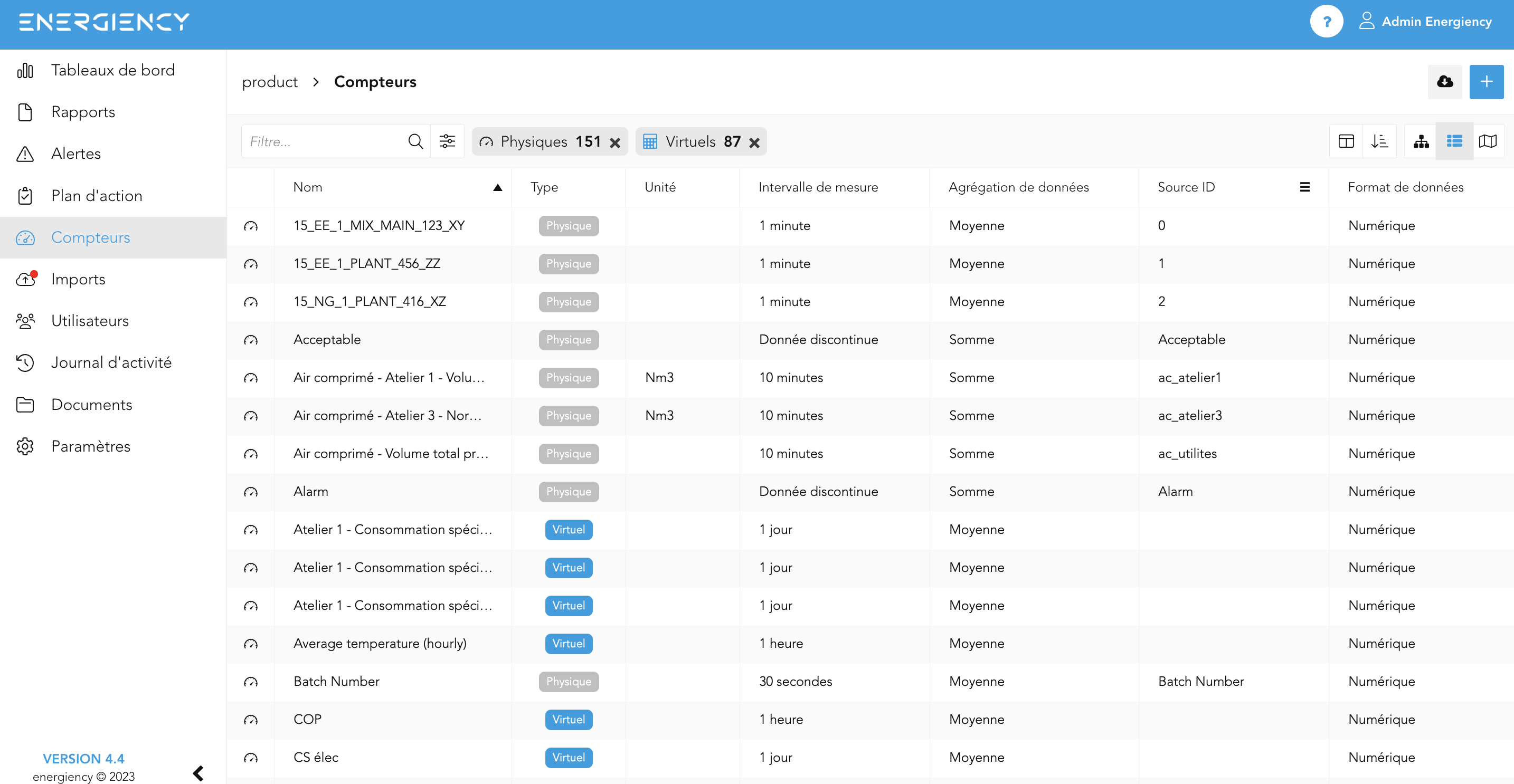

To display the list of Meters, click on "Meters" in the left-hand navigation bar. This shows all the physical and virtual meters.

Choose the type of view (Tree/Table)

Two view types are available for viewing meters, for Multisite platform cases three view types are available.

To change the view type, click on the view selector in the toolbar above the Meter list:

• The "Tree" allows you to display meters organised hierarchically, in a tree of user-defined folders.
• The "Table" view allows all meters to be displayed flat.

Filter by meter type

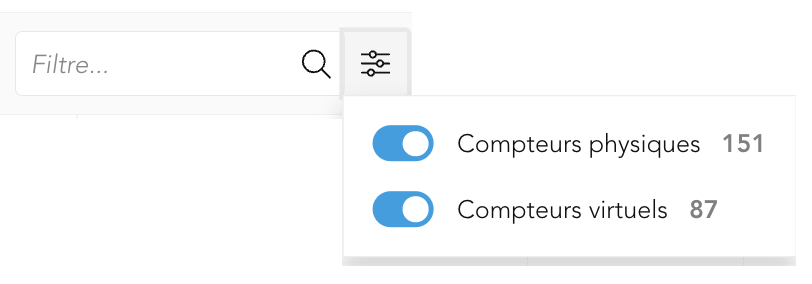

Two buttons allow you to view the meters sorted according to certain options:

• Physical, which displays only physical meters
• Virtual, which displays only virtual meters

Filter by name

The text input field can be used to filter the list of meters by name.

Choose the columns to display

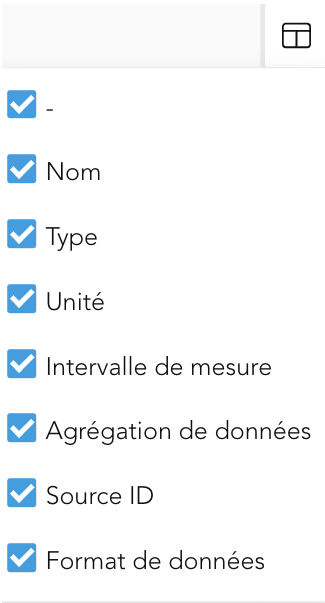

On the right it's possible to "Select columns" displayed (only available in table view).

The columns to be displayed are:

• Name
• Type
• Unit
• Measurement interval
• Data aggregation
• Source ID
• Data format

Sorting the meters

On the right it's possible to "Select sorting" columns displayed (only available in table view):

Meters can be sorted by:

• Name
• Type
• Unit
• Measurement interval
• Data aggregation
• Source ID
• Data format

View a meter

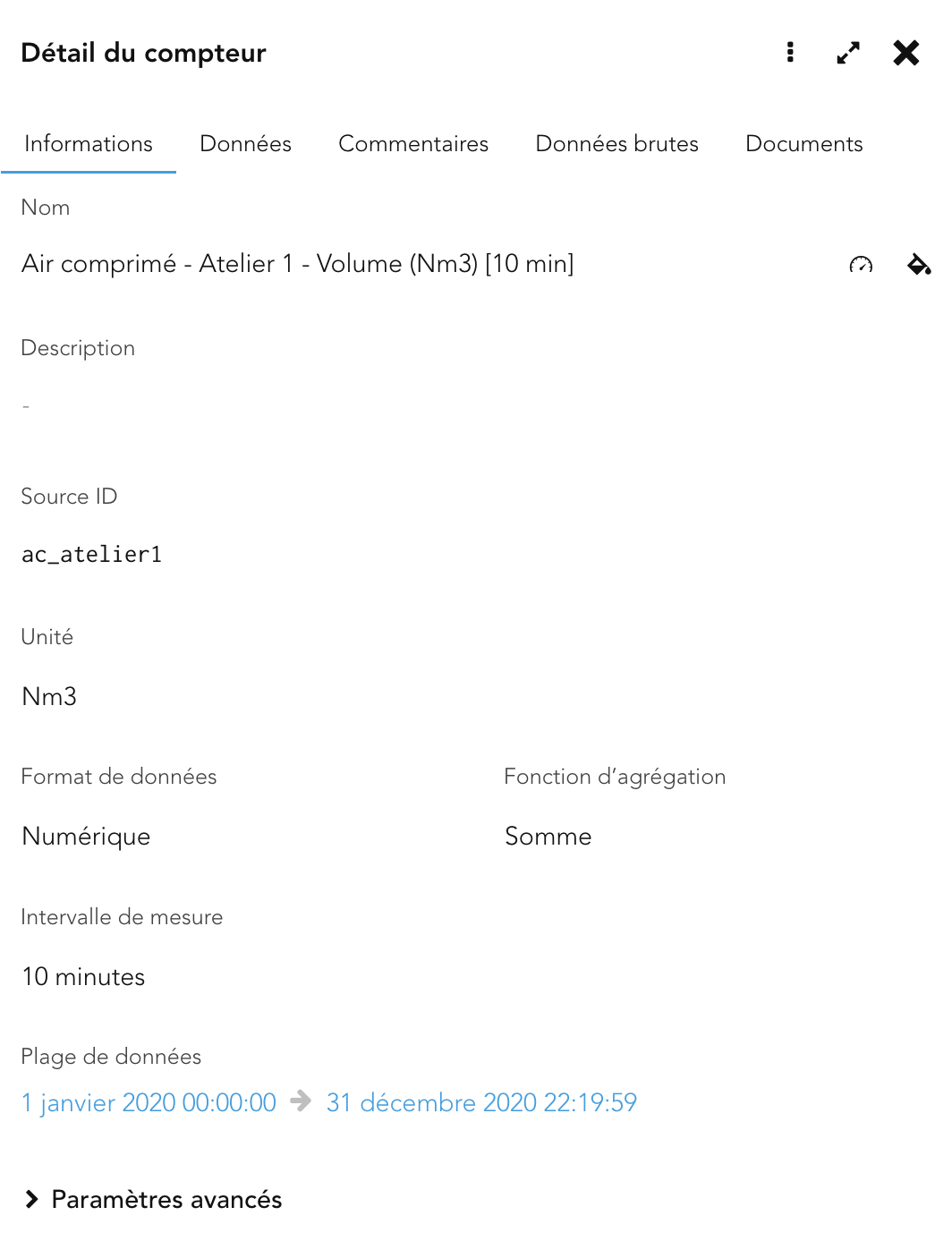

To access a specific meter, simply go to the Meters page and click on its name. Once selected, the meter is automatically displayed on the right-hand side of the screen, offering a full view of its data:

View data

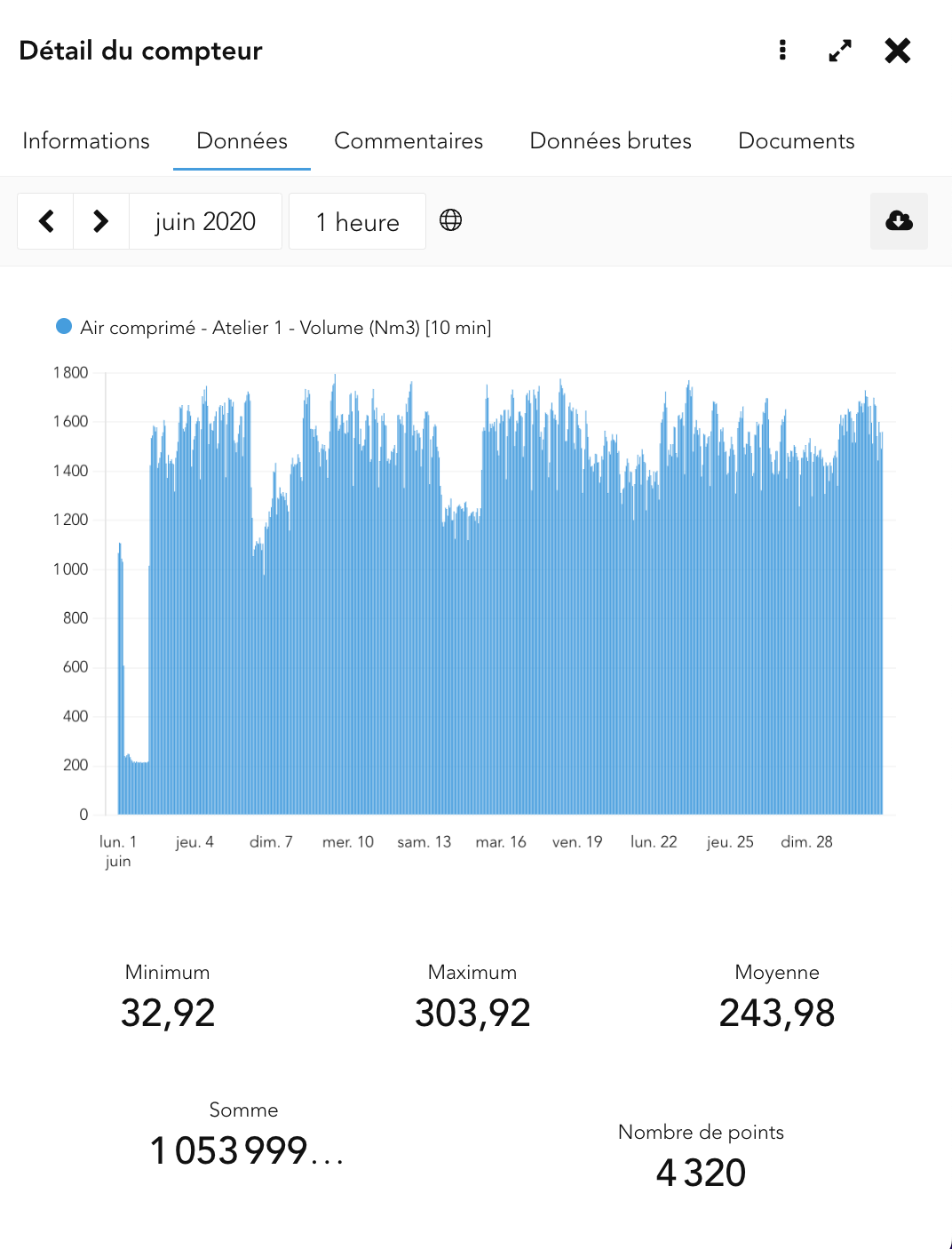

The "Data" tab allows you to view the data in the form of histograms, as well as the minimum, maximum, average, sum and number of points values over the chosen period.

You can scroll down the page to browse the meter.

The time range of the meter as well as the time step for displaying the data are shown at the top left.

The time range is the time period used to display the data in the meter.

The timeframe is the time interval used to aggregate the data displayed in the meter (data hour by hour, day by day, month by month, etc).

Changing the time range

.

To change the time range displayed, you can either:

- click on the arrows to shift the time range to the past or future

-use the calendar to manually set a start date and end date.

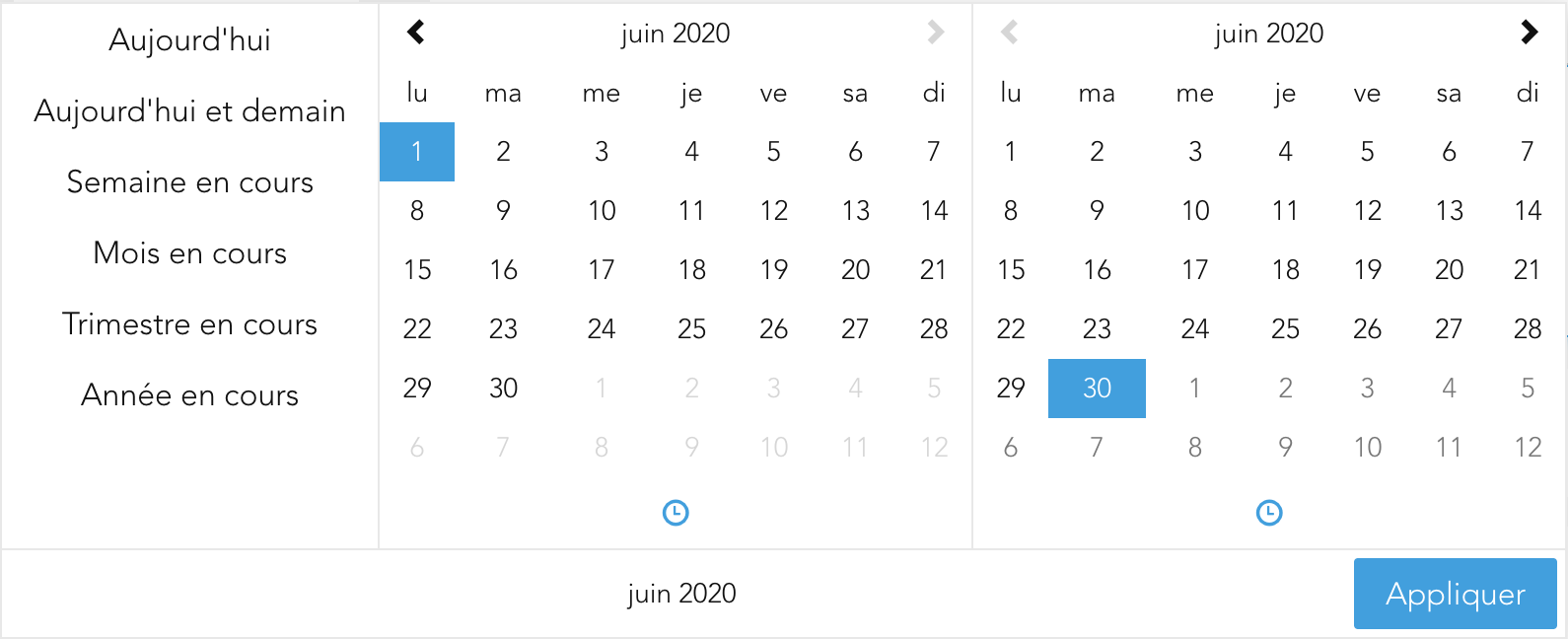

To use the calendar, click on the button with the time range displayed.

The calendar opens.

It is then possible to:

• Select a predefined time range (list on the left): click on the time range you want.
• Define the start date (first calendar) and end date (second calendar). To define a date, click on the corresponding day. At the top of each calendar, you can click on the period displayed to change the order of magnitude (month/year/decade) and use the horizontal arrows to change the period.

Once the time range has been defined, click "Apply". The data displayed will update automatically.

Changing the time step

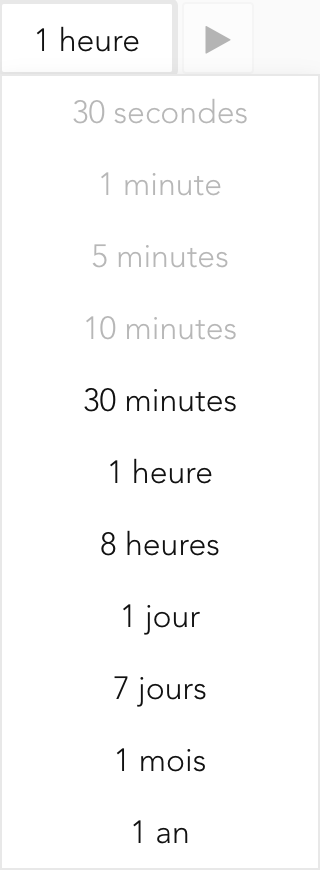

To change the display time step, click on the button with the time step displayed.

The list of available time steps is displayed. Click on the time step you want.

Please note that the time steps available depend on the time range displayed. Indeed, to avoid overloading the platform with too much information, it is not possible to display a very fine time step over too large a time range (for example hourly data over a year). To display more precise data, feel free to reduce the time range displayed.

Exporting meter data

In the toolbar above a meter, the button allows meter data to be exported in CSV format. On widgets allowing this, a drop-down list allows you to choose the time step with aggregation of the data to be exported (or Raw data to export non-aggregated data).

Display raw data for a meter

.

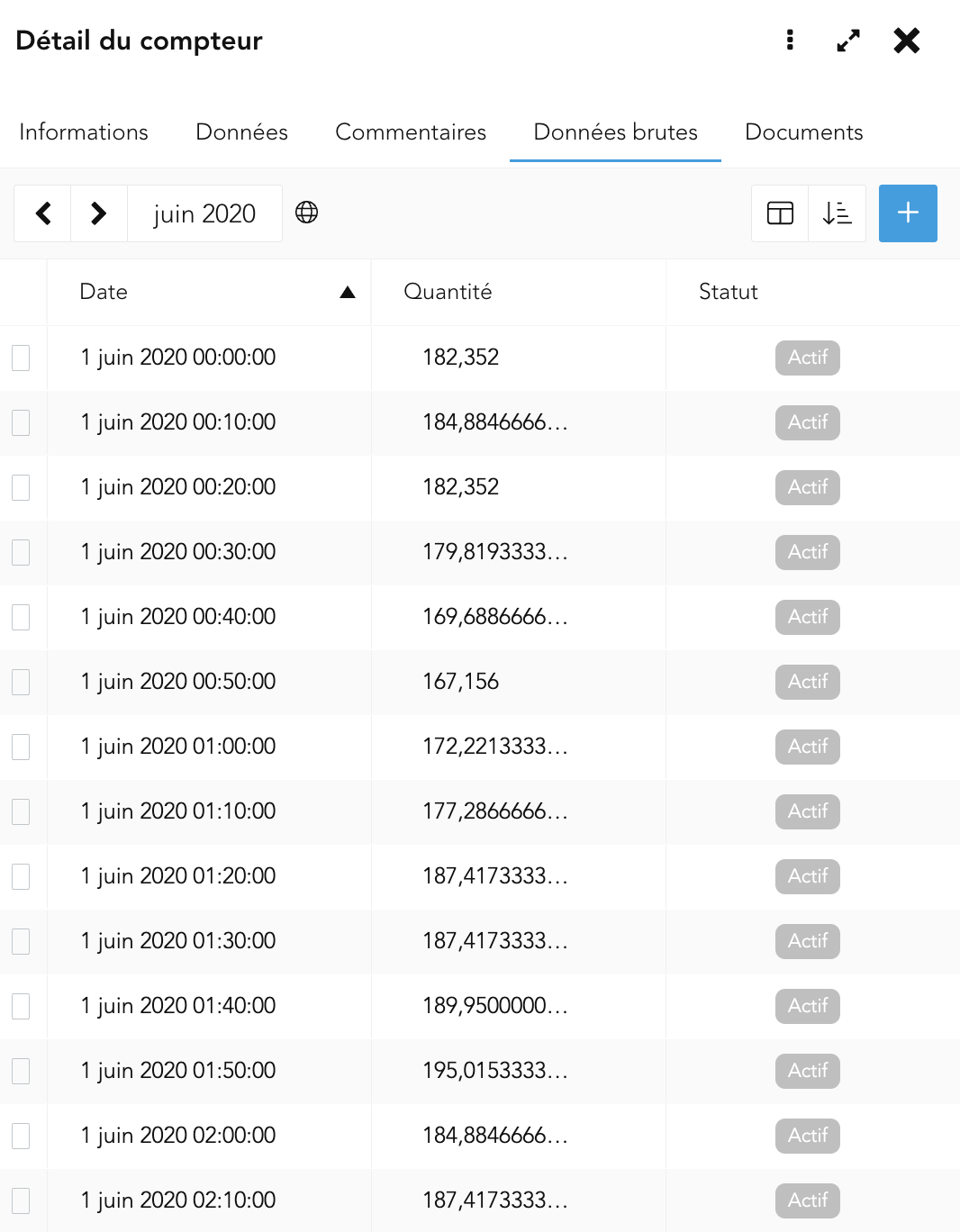

The "Raw data" tab allows you to view the data as it has been integrated into the Energiency platform. The points and their dates are not affected in any way by the meter configuration.

On the right it is possible to "Select columns" displayed.

The columns to be displayed are:

• Date
• Quantity
• Status

On the right it's also possible to "Select sort" the columns displayed.

Data can be sorted by:

• Date
• Quantity
• Status

View documents associated with a meter

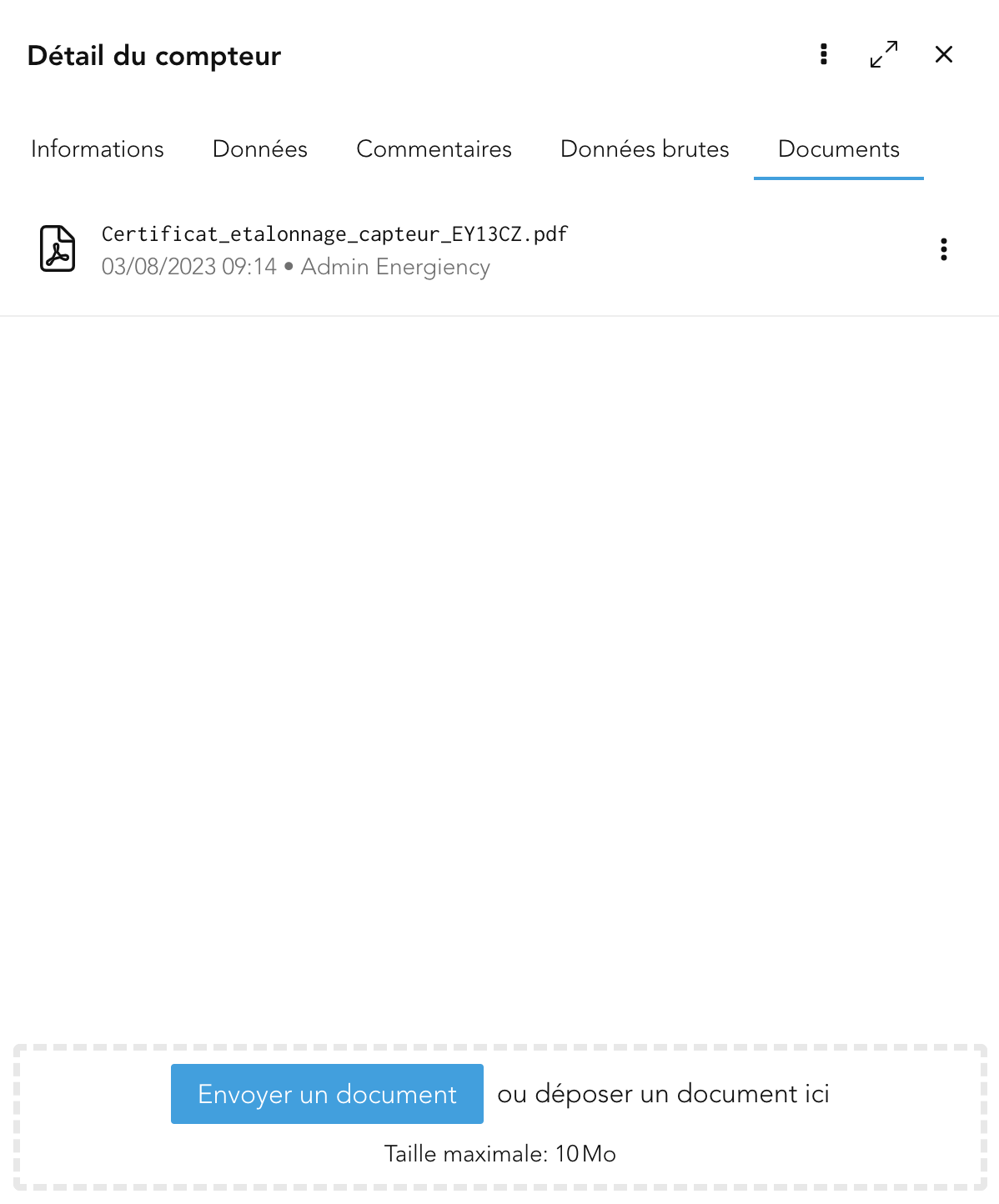

The "Document" tab allows you to view files associated with a meter:
